【Overview】

[] 1.69inch Round LCD Display Module With Touch Panel, Micro LCD Display, 240×280 Resolution, IPS, SPI And I2C Communication, 262K Display Color

[] Embedded ST7789V2 Driver And CST816T Capacitive Touch Control Chip

[] Comes with examples for Arduino, ESP32S3, Pico, Raspberry Pi, STM32, etc.

【Features】

[] 240×280 resolution, 262K colors, clear and colorful displaying effect

[] High touch screen transmittance, fast response and long lifetime

[] Embedded ST7789V2 driver chip and CST816T capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino / STM32

[] Comes with online development resources and manual (examples for Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino / STM32)

【Specifications】

[] OPERATING VOLTAGE: 3.3V / 5V

[] RESOLUTION: 240 × 280 pixels

[] DISPLAY DRIVER: ST7789V2

[] TOUCH DRIVER: CST816T

[] DISPLAY INTERFACE: 4-wire SPI

[] TOUCH INTERFACE: I2C

[] DISPLAY PANEL: IPS

[] TOUCH TYPE: Capacitive

[] DISPLAY SIZE: 27.972 × 32.634mm

[] PIXEL SIZE: 0.11655 × 0.11655mm

[] MODULE SIZE: 33.13 × 41.13mm

【Onboard Voltage Translator】

[] Compatible With 3.3V / 5V Power Input

【SPI And I2C Control Interfaces】

[] Embedded ST7789V2 Driver And CST816T Capacitive Touch Control Chip

[] VCC: Power (3.3V / 5V input)

[] GND: Ground

[] LCD_DIN: SPI MOSI pin

[] LCD_CLK: SPI Clock pin

[] LCD_CS: LCD Chip Selection, low active

[] LCD_DC: LCD Data/Command selection (high for data, low for command)

[] LCD_RST: LCD Reset, low active

[] LCD_BL: LCD Backlight

[] TP_SDA: TP Data pin

[] TP_SCL: TP Clock pin

[] TP_RST: TP Reset, low active

[] TP_IRQ: TP Interrupt pin

【Pin Connection Reference】

【Usage Example】

[] Do not include Raspberry Pi5

[] Connecting with Raspberry Pi 5

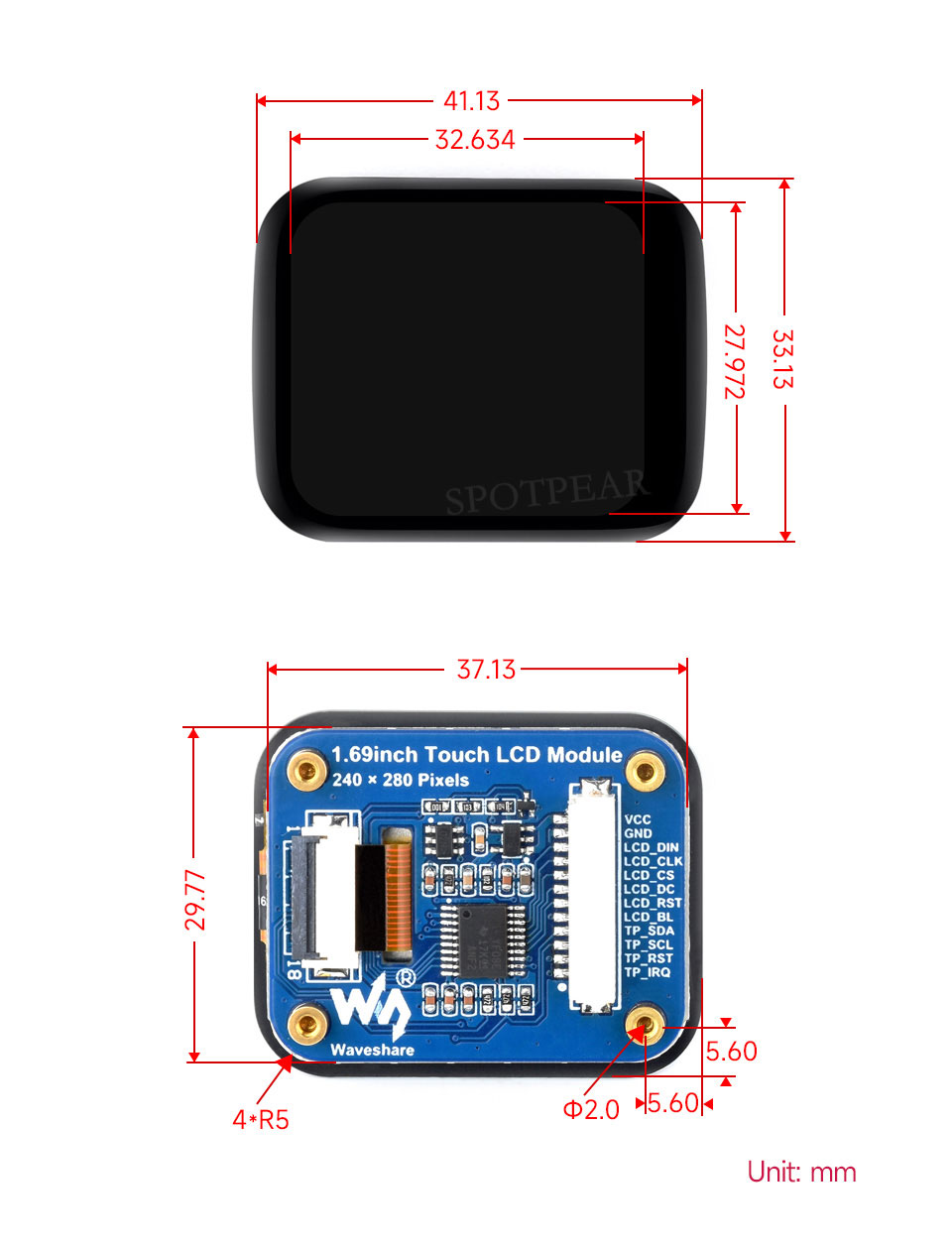

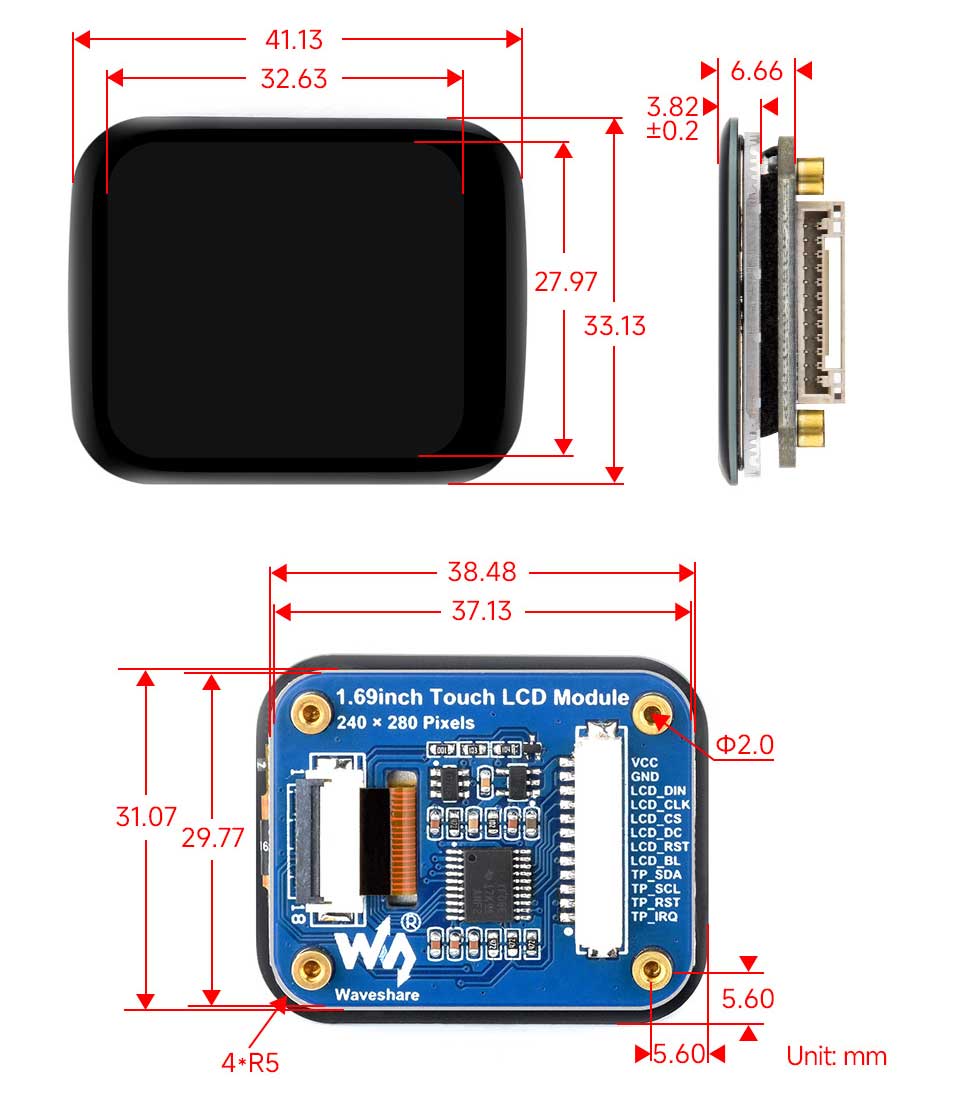

【Outline Dimensions】

[] 1.69inch Touch LCD Module x1

[] GH1.25 12Pin cable x1
