DeepSeek AI Voice Chat ESP32 C6 Development Board 1.69 inch LCD Display 240x280 1.69inch TouchScreen Programmable Watch
$14.9
ESP32-C6 1.69-inch 240×280 resolution Wi-Fi 6 LCD touch screen development board AI voice dialogue support deepseek
EPS32 DeepSeek AI Recommend
ESP32 Display Recommend
ESP32-C6
1.69 inch touch LCD development board
Built-in ST7789V2 display driver chip and CST816T capacitive touch chip
Version selection
LCD screen parameters
| Display Panel | IPS | Display size | 1.69 in |
|---|---|---|---|
| Display resolution | 240 × 280 pixels | Display Color | 262K |
| Display Brightness | 435cd/㎡ | Contrast | 315:1 |
| Communication interface | SPI | Driver IC | ST7789V2 |
| Touch Type | Capacitive Sensing | Touch IC | CST816T |
Product Features
ESP32-C6-Touch-LCD-1.69 is a low-cost, high-performance microcontroller development board designed by Waveshare. In a small form factor, it is equipped with a 1.69-inch capacitive touch LCD screen, a lithium battery charging chip, an audio codec chip, a six-axis sensor (three-axis accelerometer and three-axis gyroscope), and RTC and other peripherals, making it easy to develop and embed applications into products.
The main features are：
- Equipped with a high-performance RISC-V 32-bit processor and a low-power RISC-V 32-bit processor, the high-performance processor clock is up to 160MHz, and the low-power processor clock can reach 20MHz
- Integrated Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications for superior RF performance
- Onboard 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and external 16MB Flash
- Uses Type-C interface, no need to worry about plugging it in the right or wrong direction
- Onboard 1.69-inch capacitive touch LCD screen, 240 × 280 resolution, 262K color, can clearly display color images
- Built-in ST7789V2 driver chip and CST816T capacitive touch chip, using SPI and I2C interface communication respectively, without occupying too many interface pin resources
- Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope) for motion detection, step counting, etc.
- Onboard PCF85063 RTC chip, which can easily realize RTC function requirements
- Onboard RST, BOOT and a customizable side button, convenient for custom function development using buttons
- Onboard 3.7V MX1.25 lithium battery charging and discharging interface
- Onboard ES8311 audio codec chip, microphone and speaker, easy to use
- Lead out GPIO, I2C, USB and UART pads for external devices and debugging, flexible configuration of peripheral functions
- Supports flexible clock, module power individual setting and other precise control, realizing multi-scenario low power consumption mode
- Touch screen has high transmittance, fast response and long life
ESP32-C6 for the AIoT Market
Equipped with a high-performance RISC-V 32-bit processor and a low-power RISC-V 32-bit processor, with a main frequency of up to 160MHz, powerful AI computing capabilities and secure encryption mechanism
More powerful wireless connectivity
Supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread), and its low-power Bluetooth subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
Support AI voice interaction
No need for tedious assembly and wiring steps, quickly connect to of Brother Xia
Transform into your exclusive intelligent AI partner
Supports a number of domestic large language models such as DeepSeek, Doubao and Tongyi Qianwen
Small panel, more touch possibilities
Applicable to the development of various intelligent devices and can realize human-computer interaction functions
Resource Overview
- ESP32-C6
- W25Q128JVSIQ
16MB NOR-Flash
- PCF85063
RTC clock chip
- QMI8658
Six-axis inertial measurement unit (IMU), including a 3-axis gyroscope and a 3-axis accelerometer
- ETA6098
High-efficiency lithium battery charging chip
- MX1.25 Li-ion battery port
MX1.25 2P connector, can be used to connect 3.7V lithium battery, support charging and discharging
- Type-C port
ESP32-C6 USB interface, used for burning programs and
log printing
- MX1.25 speaker port
- Onboard patch antenna
- Power on function button
Supports detection of power-on function, single click, double click, multi-click and long press operations
- BOOT button
- RST Reset button
- microphone
- NS4150B
3.0W Mono Class-D Audio Power Amplifier
- ES8311 (back)
Low-power mono audio codec
Pin Definition

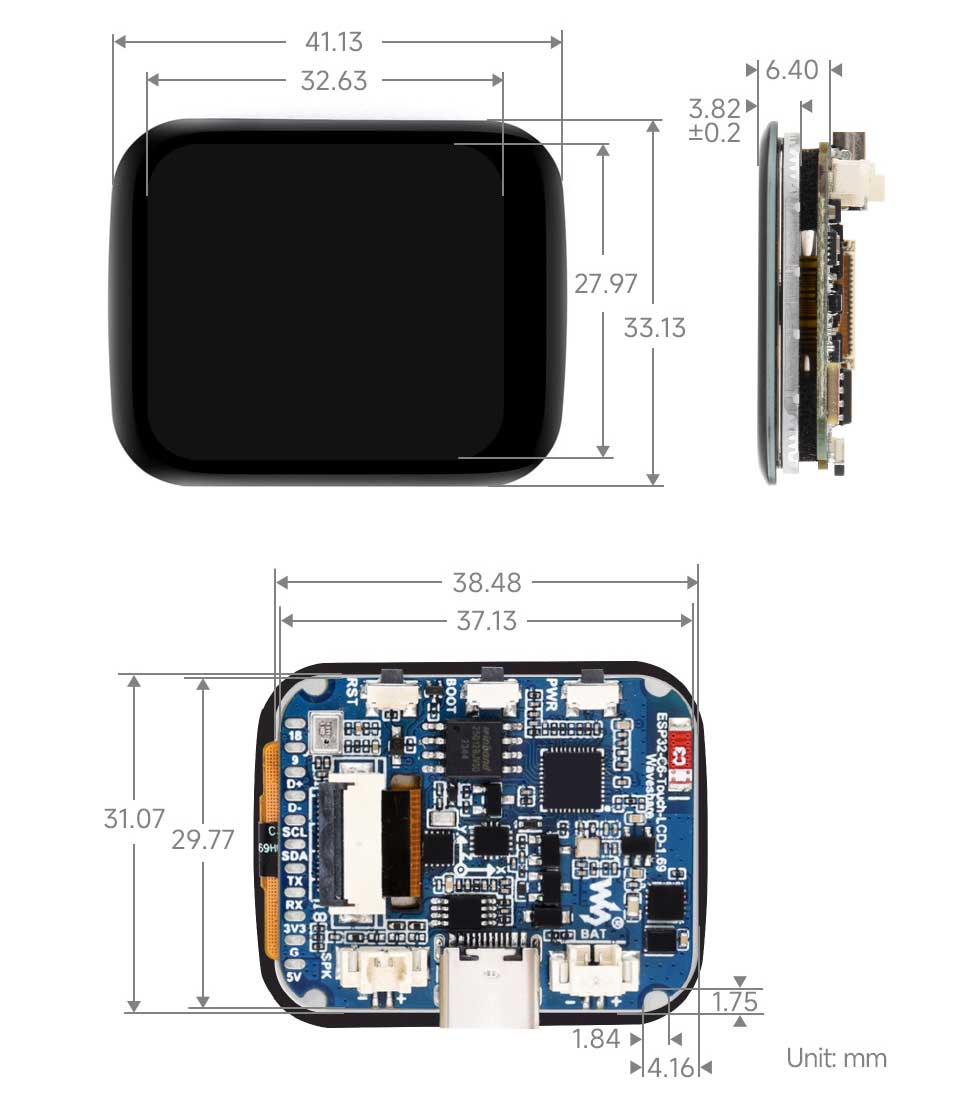

Product size
